Get started with the Nexi N950 – your new SmartPOS terminal from NETS and Shopbox.
In partnership with NETS, we offer the Android-based SmartPOS terminal, Nexi N950. It features a touchscreen, built-in thermal printer, 4G/Wi-Fi connectivity, and barcode scanning using the device camera.
The N950 is manufactured by Newland NPT
Device specifications
-
Model: Nexi N950
-
Operating System: Android / Poynt
-
Connectivity: Wi-Fi and GSM (4G)
-
Power Supply: USB-C / Cradle
-
Printer: Built-in, 57 mm
Paper roll installation
-
Lift the printer cover by pulling the back plate away from the terminal.
-
Place the paper roll as shown in the image below.
Software installation & updates
-
Shopbox is not involved in assigning terminals to customers. This is handled solely by NETS.
-
Shopbox is automatically installed when the device is started for the first time.
-
Updates are managed by Shopbox via the GoDaddy Poynt Developer Center.
-
Please note: Shopbox cannot control POS versions on individual devices.
Configuring Shopbox on the N950
-
Set the cash register terminal type to Poynt in Partner or Nova.
-
No configuration is required within the POS.
Features
-
Tips: Not supported at this time
-
Surcharge: Not supported at this time
First-time setup
When the device is powered on for the first time, the customer will be guided through four steps:
-

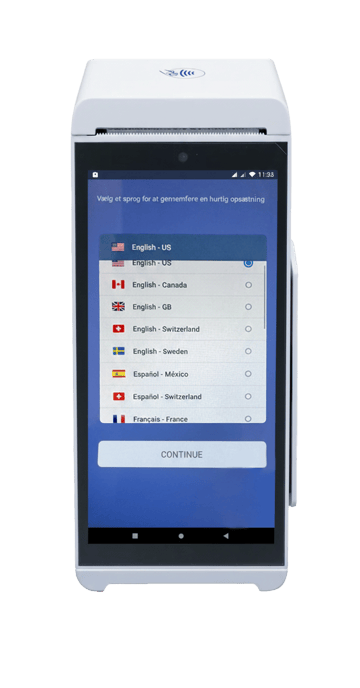

Choose country
-

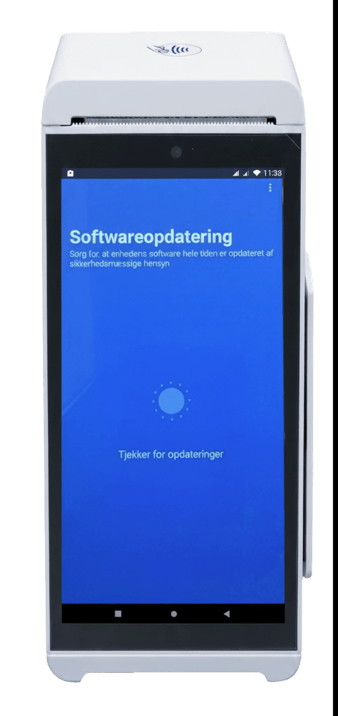

Update software
-

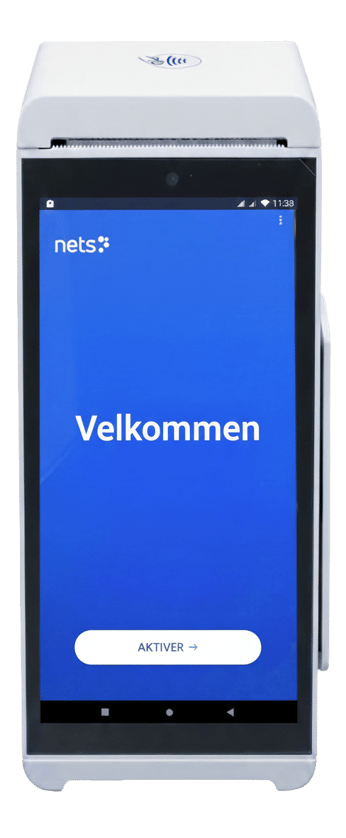

Activate device
-

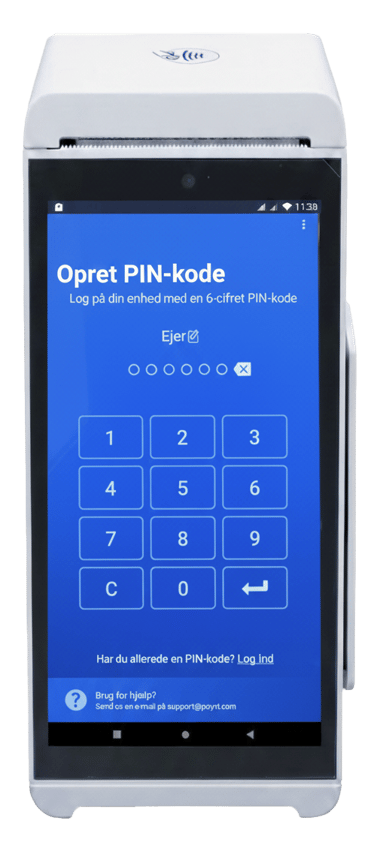

Create a PIN code

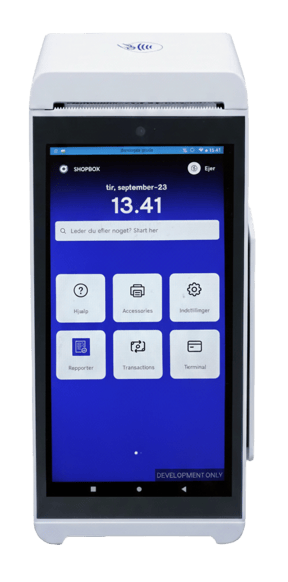

Once completed, Shopbox is installed and ready to be configured.
Navigation

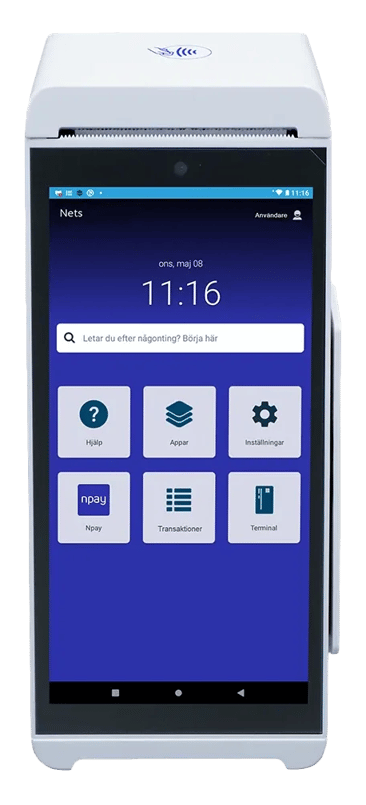

The device runs Poynt OS, layered on top of Android OS.
-

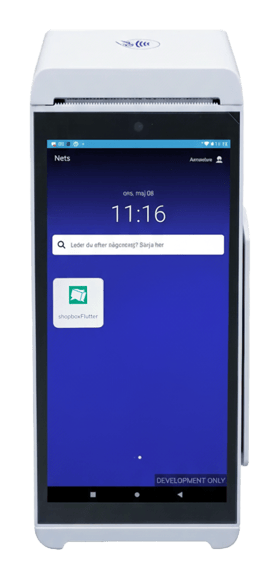

To open Shopbox: Swipe left on the home screen.

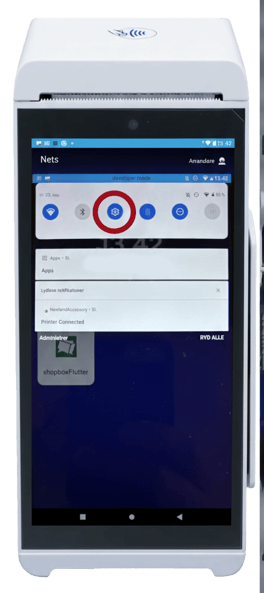

Returning to the home screen from Shopbox:
-
Swipe down from the top
-
Tap the cogwheel icon
-

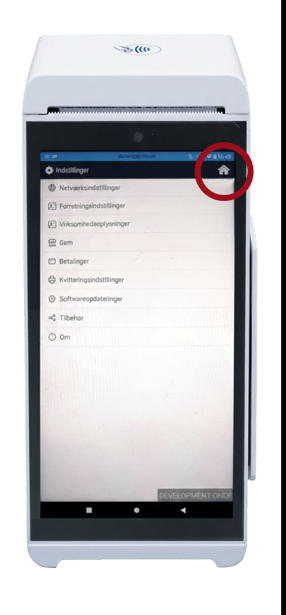

Tap the home icon in the top-right corner
Restarting or shutting down
-
Hold the power button on the left side of the device.
-
Select either Shutdown or Restart on the screen.
